n2nc::Filter Class Reference

Base class for plugin-based traffic filter. More...

#include <filter.h>

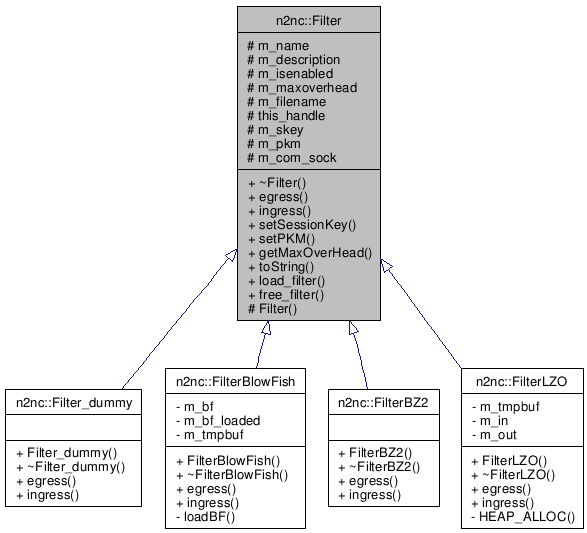

Inheritance diagram for n2nc::Filter:

[legend]

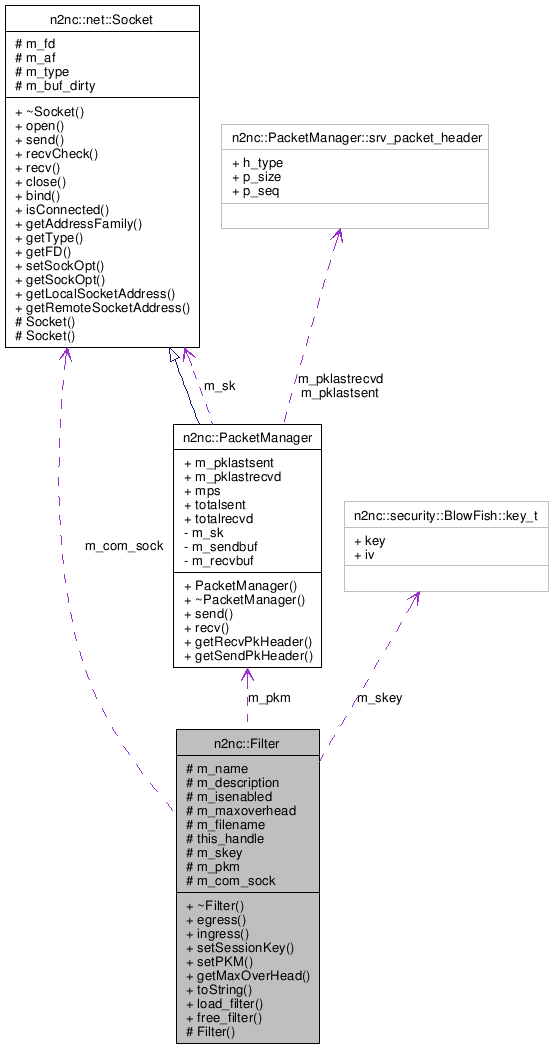

Collaboration diagram for n2nc::Filter:

[legend]

List of all members.

Public Types
enum	status_t { FILTER_CONTINUE = 0, FILTER_RETURN, FILTER_DROP }
Public Member Functions
virtual status_t	egress (void *inbuf, void *outbuf, size_t inlen, size_t *outlen)=0
virtual status_t	ingress (void *inbuf, void *outbuf, size_t inlen, size_t *outlen)=0
virtual int	setSessionKey (security::BlowFish::key_t *key)
virtual int	setPKM (n2nc::PacketManager *pkm)
virtual size_t	getMaxOverHead ()
std::string	toString ()
Static Public Member Functions
static Filter *	load_filter (const std::string filename)
static int	free_filter (Filter *filter)
Protected Member Functions
	Filter (std::string name, std::string description)
Protected Attributes
std::string	m_name
std::string	m_description
bool	m_isenabled
size_t	m_maxoverhead
std::string	m_filename
void *	this_handle
security::BlowFish::key_t *	m_skey
n2nc::PacketManager *	m_pkm
n2nc::net::Socket *	m_com_sock

---

Detailed Description

Base class for plugin-based traffic filter.

Author:

fabsoft <fabsoft@gmail.com>

Note:

Plugin has to define these factory/cleaner with

extern "C"
static Filter* get_istance(void *argv,int argc);
extern "C"
static int free_istance();

Examples:

filter_ex.cpp.

Definition at line 28 of file filter.h.

---

Member Enumeration Documentation

enum n2nc::Filter::status_t

Defines the packet behaviour in the chain

Enumerator:

FILTER_CONTINUE	The packet follows the filter chain
FILTER_RETURN	The packet exit the filter chain
FILTER_DROP	The packet is discarded

Definition at line 59 of file filter.h.

---

Constructor & Destructor Documentation

n2nc::Filter::Filter	(	std::string	name,
		std::string	description
	)			[inline, protected]

Each filter has to set its name and description by constructor call.

Note:

Use Filter::load_filter to creates a new Filter

Definition at line 48 of file filter.h.

---

Member Function Documentation

virtual status_t n2nc::Filter::egress	(	void *	inbuf,
		void *	outbuf,
		size_t	inlen,
		size_t *	outlen
	)			[pure virtual]

Outgoing traffic goes through egress hook.

Implemented in n2nc::Filter_dummy, n2nc::FilterBlowFish, n2nc::FilterBZ2, and n2nc::FilterLZO.

Examples:

filter_ex.cpp.

Referenced by n2nc::FilterAdapter::send().

Here is the caller graph for this function:

virtual status_t n2nc::Filter::ingress	(	void *	inbuf,
		void *	outbuf,
		size_t	inlen,
		size_t *	outlen
	)			[pure virtual]

Ingoing traffic goes through ingress hook

Implemented in n2nc::Filter_dummy, n2nc::FilterBlowFish, n2nc::FilterBZ2, and n2nc::FilterLZO.

Referenced by n2nc::FilterAdapter::recv().

Here is the caller graph for this function:

virtual int n2nc::Filter::setSessionKey

(

security::BlowFish::key_t *

key

)

[inline, virtual]

Sets the session key. usually 128 bit

Definition at line 80 of file filter.h.

virtual int n2nc::Filter::setPKM

(

n2nc::PacketManager *

pkm

)

[inline, virtual]

Set the packet manager to the filter, used in certain circumstances

Definition at line 82 of file filter.h.

std::string n2nc::Filter::toString

(

)

[inline]

Prints the filter name and description..

Examples:

filter_ex.cpp.

Definition at line 85 of file filter.h.

static Filter* n2nc::Filter::load_filter

(

const std::string

filename

)

[inline, static]

Public factory method to istanciates a new Filter module by filename

Definition at line 94 of file filter.h.

References m_filename, and this_handle.

static int n2nc::Filter::free_filter

(

Filter *

filter

)

[inline, static]

Public denstructor method.

Note:

The library will be unloaded only if there are no symbols linked against it.

Definition at line 112 of file filter.h.

References this_handle.

---

The documentation for this class was generated from the following file:

• filter.h
