n2nc::net::Socket Class Reference

The socket abstaction class. More...

#include <socket.h>

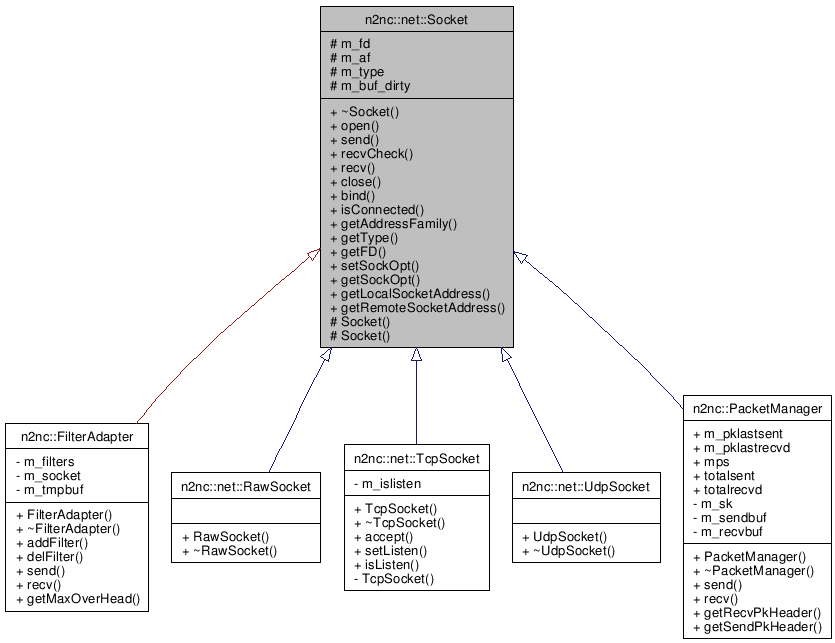

Inheritance diagram for n2nc::net::Socket:

[legend]

List of all members.

Public Types
typedef int	fd_t
Public Member Functions
virtual int	open (SocketAddress &addr)
virtual int	send (void *buf, size_t len)
virtual size_t	recvCheck ()
virtual int	recv (void *buf, size_t len)
virtual int	close ()
virtual int	bind (SocketAddress &addr)
virtual bool	isConnected ()
int	getAddressFamily ()
int	getType ()
fd_t	getFD () const
int	setSockOpt (int optname, bool value, int level=SOL_SOCKET)
bool	getSockOpt (int optname, int level=SOL_SOCKET)
SocketAddress *	getLocalSocketAddress () const
SocketAddress *	getRemoteSocketAddress () const
Protected Member Functions
	Socket (int af, int type)
Protected Attributes
int	m_fd
int	m_af
int	m_type
void *	m_buf_dirty

---

Detailed Description

The socket abstaction class.

Author:

fabsoft <fabsoft@gmail.com>

Examples:

socket_ex.cpp.

Definition at line 16 of file socket.h.

---

Constructor & Destructor Documentation

n2nc::net::Socket::Socket	(	int	af,
		int	type
	)			[protected]

Register a new socket based on address family and type.

Note:

Use the derived class Constructor

Definition at line 6 of file socket.cpp.

References m_fd.

---

Member Function Documentation

int n2nc::net::Socket::open

(

SocketAddress &

addr

)

[virtual]

Opens a connection to a remote peer service defined in addr. Once using open() function this Socket will be treated as connection-oriented socket and by the way this is mandatory on TcpSocket (SOCK_STREAM type). NOTE: most functions returns native values.

Definition at line 60 of file socket.cpp.

References n2nc::net::SocketAddress::getRawSockAddr(), n2nc::net::SocketAddress::getRawSockAddrLen(), and m_fd.

Referenced by ThreadTest::entry_point().

Here is the call graph for this function:

Here is the caller graph for this function:

int n2nc::net::Socket::send	(	void *	buf,
		size_t	len
	)			[virtual]

Send data buf to remote peer

Reimplemented in n2nc::FilterAdapter, and n2nc::PacketManager.

Definition at line 68 of file socket.cpp.

References m_fd.

Referenced by ThreadTest::entry_point(), n2nc::PacketManager::send(), and n2nc::FilterAdapter::send().

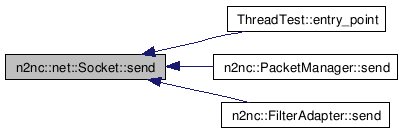

Here is the caller graph for this function:

size_t n2nc::net::Socket::recvCheck

(

)

[virtual]

Check wheter the socket has Received data.Return the lenght of data in the kernel buffer

Definition at line 77 of file socket.cpp.

References m_fd, and recv().

Here is the call graph for this function:

int n2nc::net::Socket::recv	(	void *	buf,
		size_t	len
	)			[virtual]

Receive len leght data from remote peer and store it to buf

Reimplemented in n2nc::FilterAdapter, and n2nc::PacketManager.

Examples:

socket_ex.cpp.

Definition at line 87 of file socket.cpp.

References m_fd.

Referenced by n2nc::PacketManager::recv(), n2nc::FilterAdapter::recv(), and recvCheck().

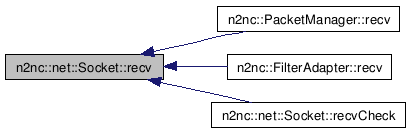

Here is the caller graph for this function:

int n2nc::net::Socket::close

(

)

[virtual]

Closes the socket

Definition at line 95 of file socket.cpp.

References m_fd.

int n2nc::net::Socket::bind

(

SocketAddress &

addr

)

[virtual]

Bind the socket to addr

Examples:

socket_ex.cpp.

Definition at line 51 of file socket.cpp.

References n2nc::net::SocketAddress::getRawSockAddr(), n2nc::net::SocketAddress::getRawSockAddrLen(), m_fd, and setSockOpt().

Referenced by n2nc::Server::listen().

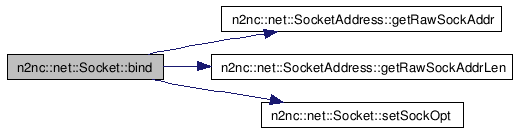

Here is the call graph for this function:

Here is the caller graph for this function:

bool n2nc::net::Socket::isConnected

(

)

[virtual]

Checks if the socket is connected

Definition at line 161 of file socket.cpp.

int n2nc::net::Socket::getAddressFamily

(

)

Returns:

the address family in OS defined format

Definition at line 31 of file socket.cpp.

int n2nc::net::Socket::getType

(

)

Returns:

the type in OS defined format

Definition at line 105 of file socket.cpp.

int n2nc::net::Socket::getFD

(

)

const

return the OS defined format file description (HANDLE in win32)

Definition at line 36 of file socket.cpp.

References m_fd.

Referenced by n2nc::net::SocketEventsHandler::add(), and n2nc::net::SocketEventsHandler::del().

Here is the caller graph for this function:

int n2nc::net::Socket::setSockOpt	(	int	optname,
		bool	value,
		int	level = SOL_SOCKET
	)

sets boolean socket option for now, boolean options only

Definition at line 40 of file socket.cpp.

References m_fd.

Referenced by bind(), and n2nc::net::TcpSocket::setListen().

Here is the caller graph for this function:

bool n2nc::net::Socket::getSockOpt	(	int	optname,
		int	level = SOL_SOCKET
	)

gets a boolean socket option

Definition at line 45 of file socket.cpp.

References m_fd.

SocketAddress * n2nc::net::Socket::getLocalSocketAddress

(

)

const

gets the sockaddr (new) associated to local endpoint

Definition at line 110 of file socket.cpp.

References m_fd.

SocketAddress * n2nc::net::Socket::getRemoteSocketAddress

(

)

const

gets the sockaddr (new) associated to remote endpoint

Definition at line 135 of file socket.cpp.

References m_fd.

---

Member Data Documentation

int n2nc::net::Socket::m_fd [protected]

save some context switch but led memory

Definition at line 62 of file socket.h.

Referenced by n2nc::net::TcpSocket::accept(), bind(), close(), getFD(), getLocalSocketAddress(), getRemoteSocketAddress(), getSockOpt(), open(), recv(), recvCheck(), send(), n2nc::net::TcpSocket::setListen(), setSockOpt(), and Socket().

---

The documentation for this class was generated from the following files:

• socket.h
• socket.cpp
